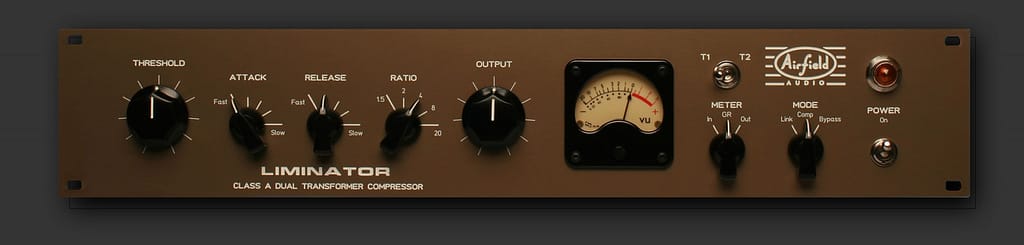

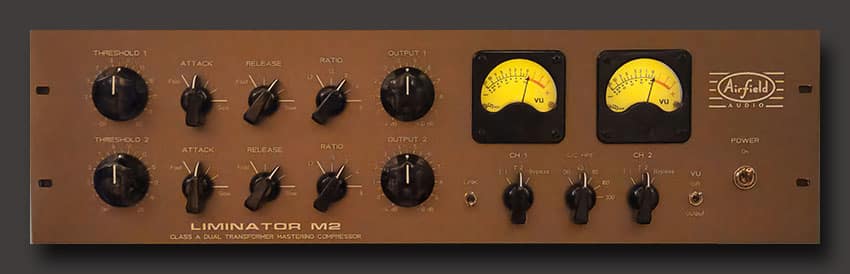

David Miller’s Vintage designed Class A Dual Transformer Mono and Stereo Compressors completely hand assembled using only the best high end components!
click on image for OWNER’S MANUAL and specifications
Features
| • vintage David Miller design • 70’s Class A electronics • completely hand-assembled • distortion-free Opto attenuator compressor system • switchable input transformers – 2 modes 1 – American Jensen transformers for a clean uncolored sound 2 – British made Sowter transformers for extra rich musical harmonics • 5 position step rotary switch on Attack, Release and Ratio • L2 – continuously variable adjustment on Threshold and Output gain, max 20dB • M2 – 21 position detented Threshold and Output, 0.5dB per step on Output gain, max 10dB • analog VU meter is switchable for signal level or gain reduction • all front panel control pots and switches are extremely high grade quality • very low THD + noise, less than .02% • link switch and a true relay bypass switch • silver soldering on all connections • circuit board made with 3 ounce copper • transformer balanced XLR in and out connections • +4 / +14 dBu meter level switch (on stereo L2 version only) • switchable 115/230 VAC operation • 2 Year Limited Warranty |
